First pictures.

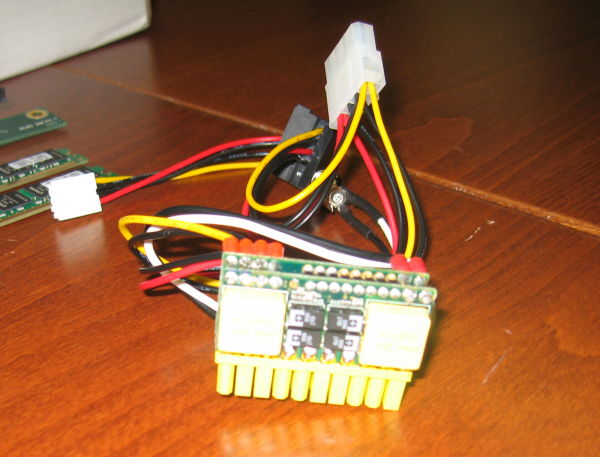

PicoPSU power supply. It's 120w of pure DC goodness. You can see the input port (white and black wires) that takes the DC input from the external power brick. It's much like a laptop's power supply in how it works. (Takes 12v DC input, and steps it down for the 5v and 3.3v rails.)
https://www.sharkyforums.com/images/...2008/12/43.jpg
The Low profile RAM and PCIe riser arrived today.

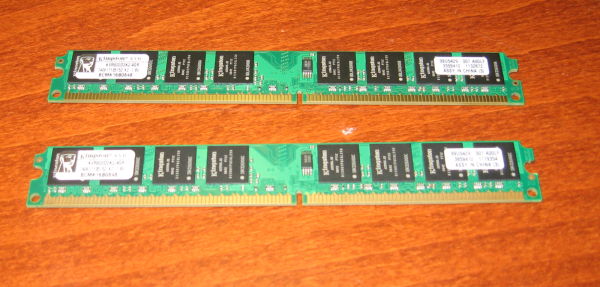

First off the RAM.
It's gonna be sweet. It's low enough that it might not even clear the DIMM slots when the tabs are up! :D
http://www.sharkyforums.com/images/i...2012/01/22.jpg

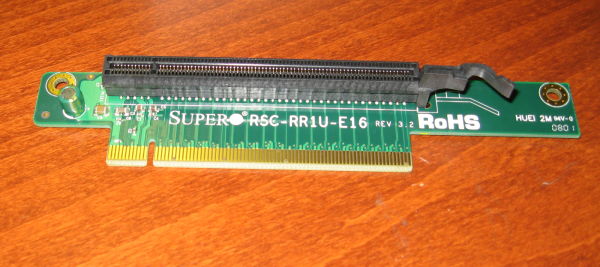

Next the PCIe riser. Not much to say. If this guy is too low I'll end up switching to one of the flexible ribbon PCIe risers.
https://www.sharkyforums.com/images/...2008/12/44.jpg

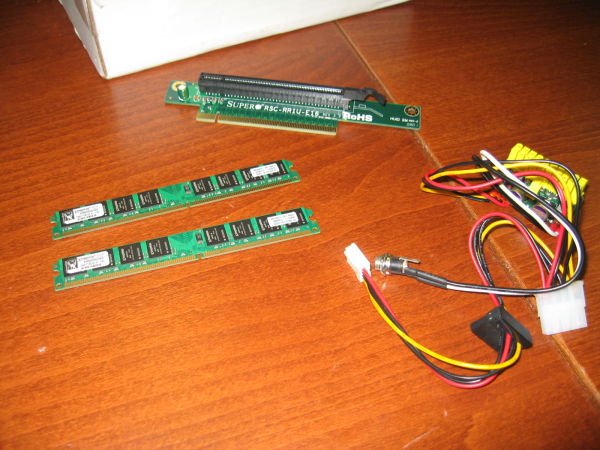

A shot of it all together.
https://www.sharkyforums.com/images/...2008/12/45.jpg

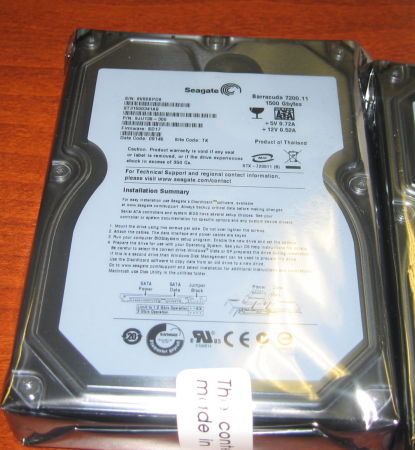

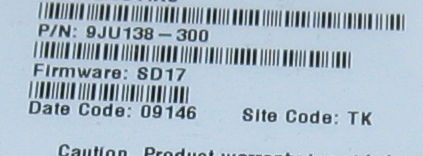

The hard drives arrived last night. Unfortunately, they are the SD17 firmware, which means I will be flashing them. But that is a small price to pay. :)
https://www.sharkyforums.com/images/...2008/12/39.jpg

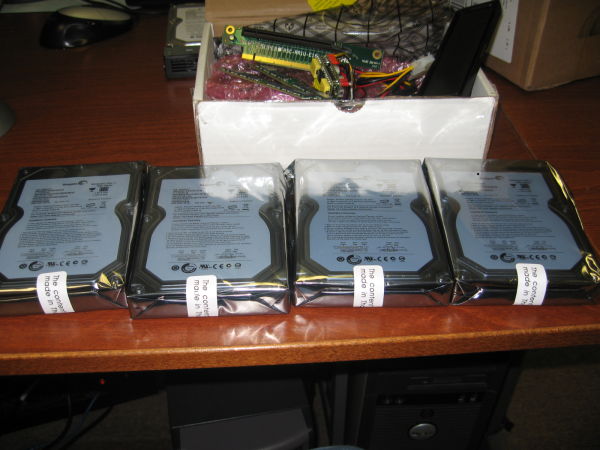

Here's the heart of my 4TB RAID5 array. :D
https://www.sharkyforums.com/images/...2008/12/40.jpg
https://www.sharkyforums.com/images/...2008/12/41.jpg
Looks great :)
I downloaded the firmware, just havent flashed it yet. Its a bit of work...
It's actually not so bad. I downloaded the SeatoolsFloppy creator .exe. I ran it, then deleted the actual seatools from it, leaving me with a FreeDOS boot floppy. There are easier ways, but I'm at work and options are limited.Quote:
Originally Posted by Colossus
I then copied the files over to the floppy and booted from it with only the drive I was flashing attached to the SATA controller on the motherboard.
One command and 2 minutes later the drive was updated. Rinse and repeat 4 times for 4 ready to use SD1A firmware based hdd's. :D

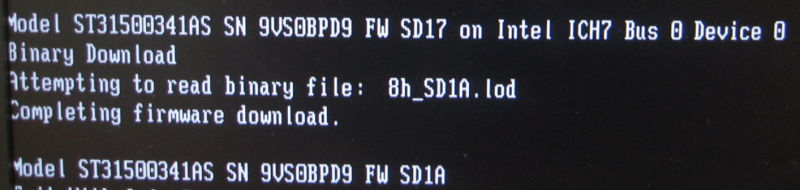

Here's a quick shot of the important part of the procedure for those who don't want to check out the blown up and blurry versions of those screens. (Sorry, flash didn't work, and I don't have a steady hand.)
https://www.sharkyforums.com/images/...2008/12/34.jpg
And the details of each drive flash, for any who are interested.
https://www.sharkyforums.com/images/...2008/12/35.jpg
https://www.sharkyforums.com/images/...2008/12/36.jpg
https://www.sharkyforums.com/images/...2008/12/37.jpg
https://www.sharkyforums.com/images/...2008/12/38.jpg
Christmas is somewhat early for me! :D
Got the hotswap cage and CF card in today. So right after I flash the firmware on the drives, I was able to install them. I have to say that I'm a Supermicro fanboy. Their build quality is always top notch, and their thermal design is excellent.

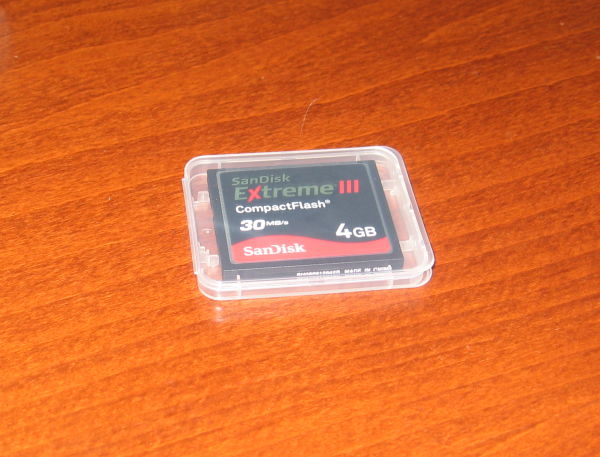

CF card. Nothing fancy, other than the 30MBps Extreme III rating. While it should matter once the OS is loaded, during the load I do want at least slow laptop drive speeds.
https://www.sharkyforums.com/images/...2008/12/29.jpg

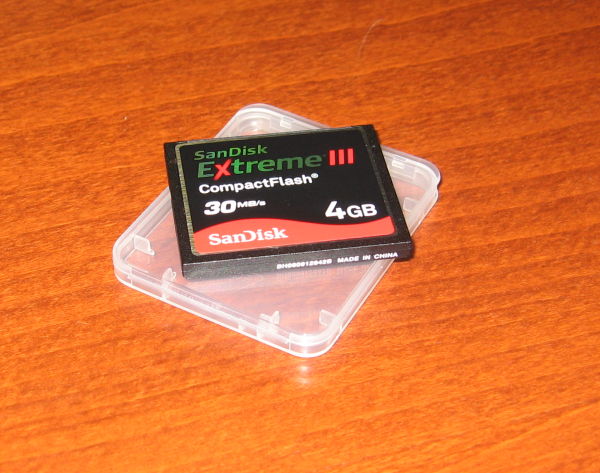

And out of the packaging.
https://www.sharkyforums.com/images/...2008/12/30.jpg

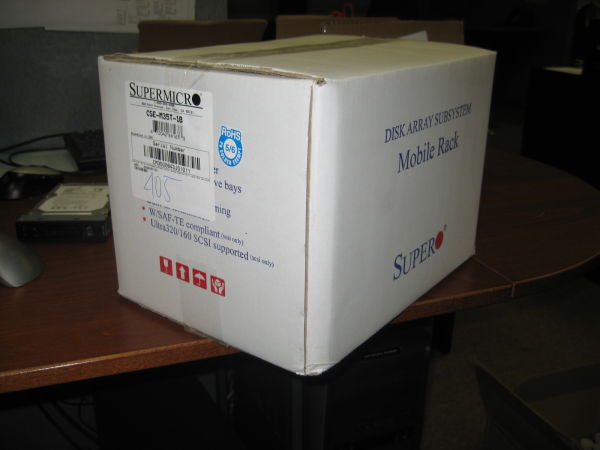

Obligatory box pics. This box is huge. It made me worry about the size of the enclosure.
https://www.sharkyforums.com/images/...2008/12/31.jpg

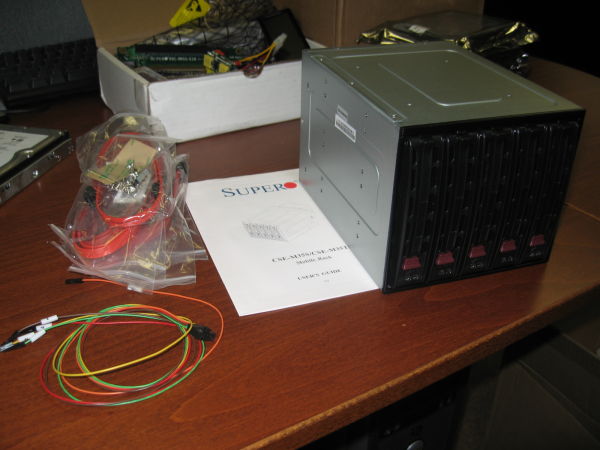

Out of the box the cage is much more reasonable in size. It's actually smaller than I expected. Supermicro's manual is thin, but accurate and complete enough that they didn't need anything more.
https://www.sharkyforums.com/images/...2008/12/32.jpg

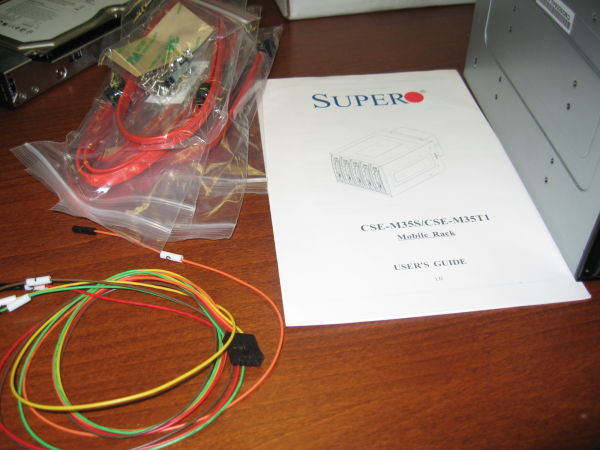

A closer look at the accessories. It comes with SATA cables, screws, labels for the drive trays, and a lead to connect the backplane LED's to the activity leads on the RAID controller.
https://www.sharkyforums.com/images/...2008/12/33.jpg
*note the loose drive caddy labels in the screw bag. It took me a bit to find that 2 label again.

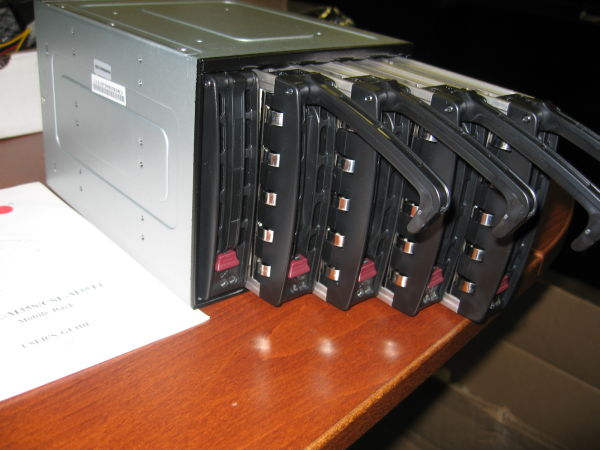

Here's all of the drive caddies pulled out in the "fan out" style that is popular to show off your hot swap goodness on websites. :p
https://www.sharkyforums.com/images/...2008/12/23.jpg

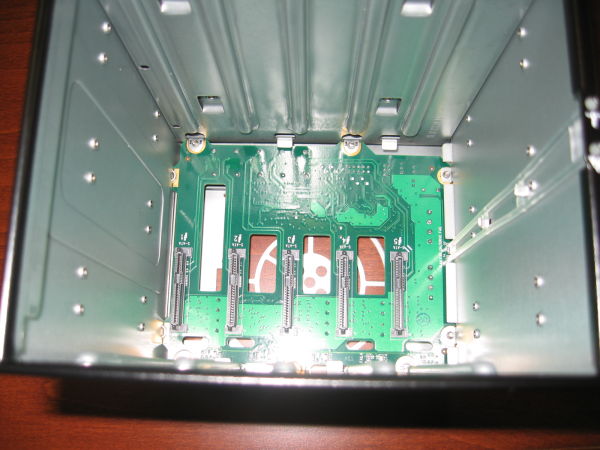

Inside the cage you can see Supermicro has made quite a few large holes in the PCB to allow for airflow. I've seen and used lesser cages where a hotswap enclosure like this has a solid backplane.
https://www.sharkyforums.com/images/...2008/12/24.jpg

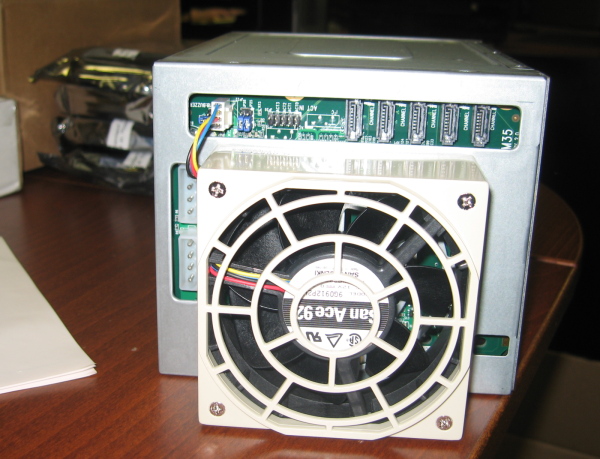

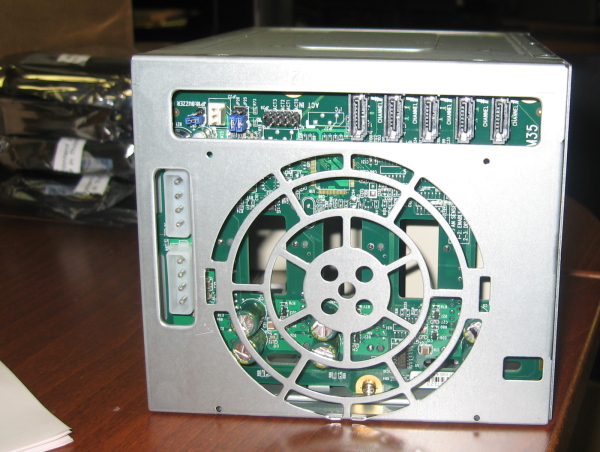

Here are two quick shots of the back, one with the fan attached, and one with it removed. It's a quick attach enclosure, making it easy to swap out or remove in my case.
https://www.sharkyforums.com/images/...2008/12/25.jpg
https://www.sharkyforums.com/images/...2008/12/26.jpg

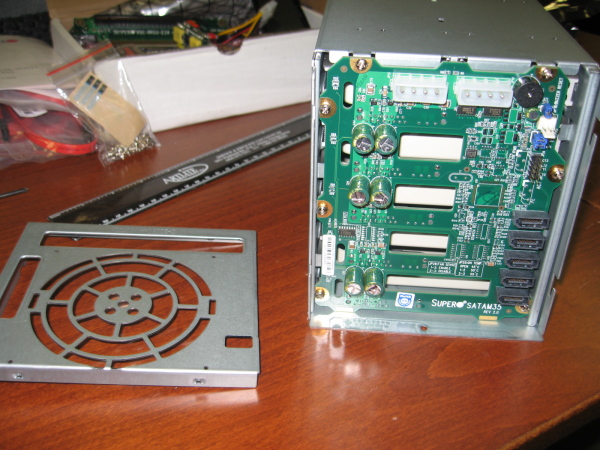

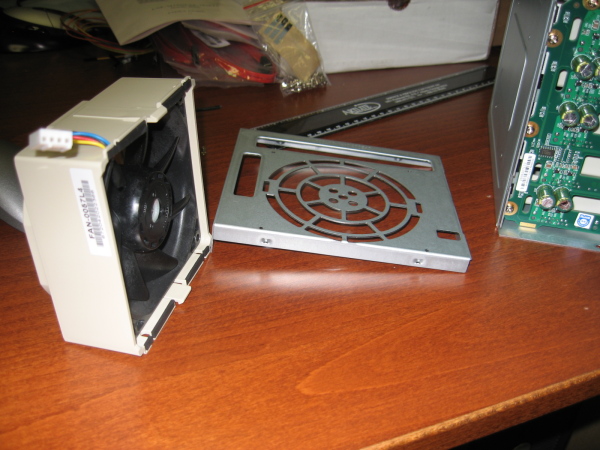

Reading the manual I discovered that it is possible to remove not only the fan, but the backplate as well. This is done so you can access the backplane for replacement, etc. I'm going to be removing it because it is one less obstruction between fresh air and the fan I'm planning on putting in the back. Which reminds me.... I need to order that fan. lol
https://www.sharkyforums.com/images/...2008/12/27.jpg
https://www.sharkyforums.com/images/...2008/12/28.jpg

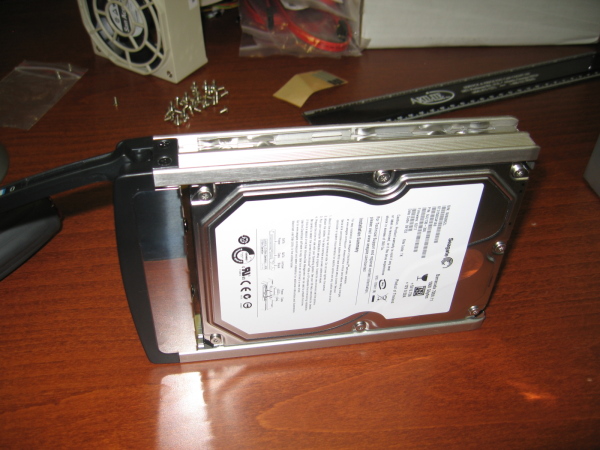

I really like Supermicro drive caddies. They are simple, effective, and promote good ventilation in the enclosure.
https://www.sharkyforums.com/images/...2008/12/21.jpg

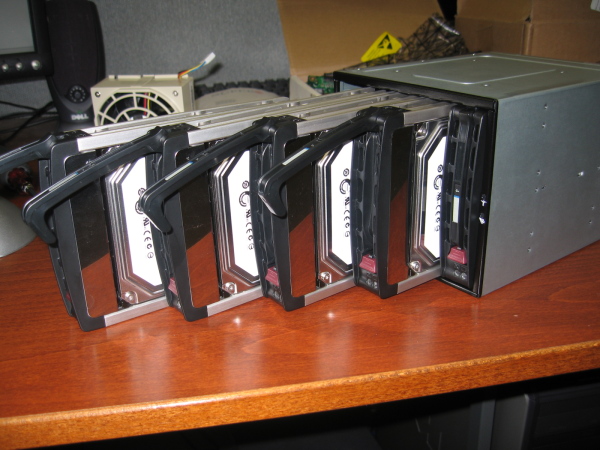

Finally, the shots of the actualy drives being inserted into the cage, again in the fanout pattern.
https://www.sharkyforums.com/images/...2008/12/22.jpg
Very nice.. That dock looks a lot like my IcyDock 5-port SATA that I have. How much did that set you back? I like the mounts and latch better on your version =/
It cost $109 with ~$14 shipping.
It's heavy, which explains why it costs so much to ship. I'd estimate the weight at around 6 lb's or so, unloaded.
*Edit: I don't know if I paid that much in shipping, since I bought it with other items, but if you place it in your cart on it's own, that's what it comes out to on Newegg.
**Edit Again: Yate Loon 140mm fan and a chrome grill ordered from FrozenCPU. Should be here around the turn of the year. (Next week.) Still not sure if I'm going to go with the T7200, or the T5600. The difference is the extra 2MB of cache for the cores to share, and 166MHz of speed, which is negligible.
Gotta love all the HD Space..
TAZTG, knowing that I live in an apartment and have limited access to tools, what would you suggest for thin metal bending and shaping? I'm thinking about trying to make the main shell of the case myself, as it will be a simple 2-bend process, but I still want it to be professional in appearance when I'm done.Quote:
Originally Posted by TAZTG
Also, I'm thinking about simply cutting a hole in the bottom section of the front plate and putting in a mesh or screen material. I want the airflow to be drawn front to back over the motherboard that will reside below the drive enclosure.
Will that look tacky? Should I try and have the metal shop do everything for me?
I am not much of a Metal Shop expert. It would depend on what kind of bending and shaping your talking about. I would suppose you need a good work bench with Vises and Clamps. Just Googled Metal Shop Tool, whoa pretty expensive stuff. Looks like you professional could be cheaper in the long run..
I'm willing to give the outer shell a shot.
For the front panel though, I think I'm going to go with something like this.
Thanks for the heads up. Merry Christmas!
Same here; they make really good stuff. I was working for a home improvement/manufacturing company a few years ago, and due to the low amount of available funds (but the necessity for new hardware) we bought a number of the "SuperServers". The best thing, IMO, is that you aren't locked-in to proprietary HDDs because of the HDD chassis; just stick your favorite brand in adn take it from there!Quote:
Originally Posted by James
Their support people can be tough to get a hold of, but they take good care of you.
I like your idea here. Keep up the good work!
